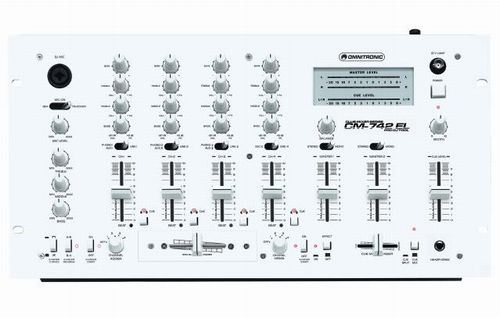

Professional 4+1-channel Club-mixer

Specifications:
- Channels 1-3 on the rearpanel switchable between phono and aux
- Channels 1-3 on the frontpanel switchable between line and phono/aux
- Channel 4 switchable between line and mic 2
- 1 separate DJ-mic channel with input-sensitivity-control (Mic Level), 3-fold tone-control (bass, middle, treble) and talkover-switch
- Mic 1 microphone-input via unbalanced XLR-socket on the frontpanel
- Mic 2 microphone-input via 1/4°° mono-jack on the rearpanel
- Input-sensitivity-control (gain) for each channel
- 3-fold, separate tone-control (bass, middle, treble) for each channel with extremely wide range
- Kill-function (signal attenuated by -30 dB) and F/X-function (signal enforced by +15 dB)possible
- High-quality and super-smooth Dual Rail-channel-faders
- With Crossfader Curve-function for extremely fast cut-times and scratch-times
- With Crossfader Reverse-function for inverting the channels
- Super-smooth Dual Rail-crossfader replaceable from above
- The crossfader can freely be assigned to channels 1-4 (Channel Assign-selector)
- Crossfader Remote Start-function switchable via X-Start-button
- 1 beat-indicator per channel for perfect mixing
- 3 LED-level-displays (master-out L/R and Cue Level)
- Headphones-connection on the frontpanel
- Headphones-output adjustable via Cue Level-fader
- Additional Cue Split/Cue Mix-button
- Cue Split-function: the Cue-signal is on the one side of the headphones and the output-signal on the other side
- Cue Mix-function: the adjustable mix of Cue-signal and output-signal is on both sides of the headphones
- Mixing of the headphones-signal possible via cue mixing-fader
- Effect Send and Effect Return-sockets on the rearpanel
- Effector can be integrated via Effect-button
- Balance-control
- 2 Master-faders
- 2 Master-Out and Rec-Out via 2 RCA-sockets each
- Additional Master 1 output via balanced XLR-connectors
- Rec-Out independent from Master-level for records with static level
- Separately controllable monitor-output (DJ-booth)
- Power supply 115/230 V AC, 50/60 Hz ~
- Power consumption 18 W
- Inputs: 3 phono, 4 line, 3 aux, 2 mic
- Outputs: 2 Master-Out, 1 Rec-Out, 1 Booth-Out via RCA Fader
- Master 1 Out via 2 additional, balanced XLR-connectors
- Dimensions (WxDxH) 482 x 241 x 92 mm
- Weight 4.8 kg
